Plumbed in type water dispensers with filter

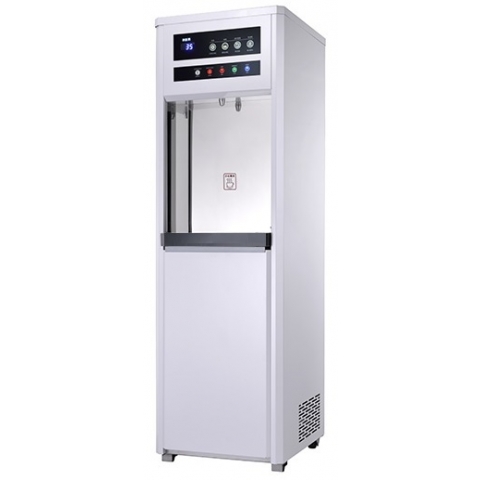

PM-1113T: Plumbed in type digital water dispenser. Touch panel control. Single water out for hot & ambient & cold water.
Detail
PM-1113T: Plumbed in type digital water dispenser. Touch panel control.
Single water out for hot & ambient & cold water.


Product Functions:

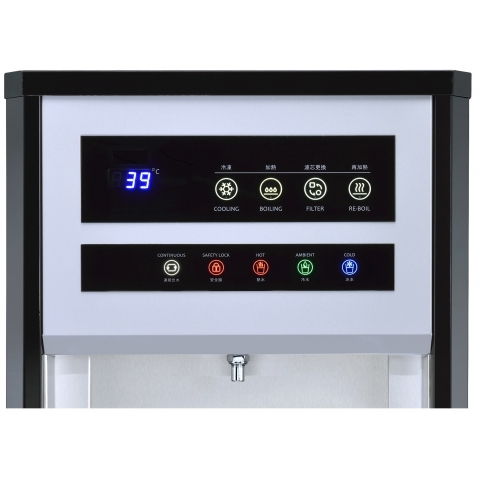

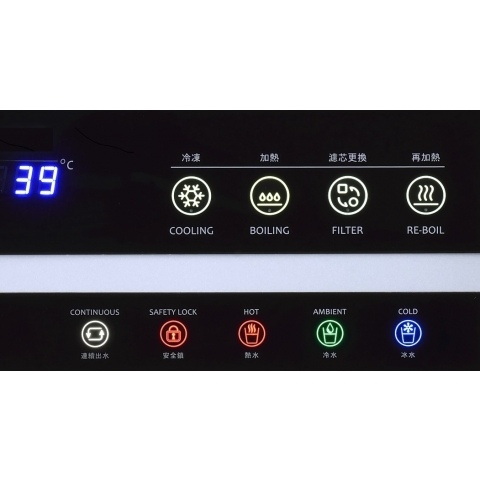

► Touch panel control, singal water out for hot, ambient and cold water.
► Intelligence water supply control.
► LED digital display Cold, Ambient & Hot water temperature.
► LED Indicator Light.
Big drip tray design. Fashion and easy to clean.
► Adjustable screw design on the machine feet.
► Front lower panel can be removed easy. It is convenient for maintenance.
► The frame is made by 304 stainless steel. It is strong, durable and never rusty.
► Blue light guide for drinking water out. It is convenient to get the water at night.
► Re-boiling function to allow user re-boil the water manully (1 minute).
► Filters are optional:
     1.
without filters.
     2.
with 3 stages diposable filters: 5 micron PP fiber x 1, UDF activated carbon x 1, CTO activated carbon x 1.
► RO filtration system is optional.
► Special coating outer case, rust resistant and easy to maintain.
► Color: black or white.


Safety Design:

► Safety lock key avoids children scalded by hot water.
► Water Leakage Detection.
► Prevent empty burning while lack of water.
Automatically shut down power while overheating or electric leakage.

► Smart filter replacement reminder.

Quality Assurance:
► Stainless steel heating tube to enjoy quality drinking water
► R-134a environmentally friendly refrigerant.
► Heat-resistant silicon tube and stainless steel tube with food grade, in line with international standards.
► High efficient LG compressor.


Specifications:
Model Type Dimension
WxDxH(cm)
Power Water tank capacity Water capacity
(Tank is full of water)
Water capacity
(Continue use)
PM-1113T Digital
Hot & Ambient & Cold water
42.5 x 45.5 x 137 Heating: 750W
Cooling: 160W
Hot: 5L
Ambient:13L
Cold:
3L
Hot: 13L/hour
Ambient: no limited
Cold: 13L/hour
Hot: 8L/hour
Ambient: no limited
Cold: 10L/hour
